AMBROSIA PC-CF Filament of the Gods - 1KG Bambu AMS Friendly Cardboard Spools Premium 3D Printing Filament House Polycarbonate CF PCCF
AMBROSIA PC-CF Filament of the Gods - 1KG Bambu AMS Friendly Cardboard Spools Premium 3D Printing Filament House Polycarbonate CF PCCF
$ 34.99
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Ambrosia Filament's line of Polycarbonate Carbon Fiber blend of filament is designed to be printable without sacrifice. Manufactured to a tighter than standard tolerance (+/- 0.03mm) you'll experience consistent extrusion throughout the spool.
Polycarbonate filament requires a heated bed, chamber and printing at higher temperatures than other common filaments.
Feed your Printer the Filament of the Gods.
PCCF (polycarbonate + carbon fiber) combines advantages of PC filament with easier printing. This filament includes a blend of approximately 10% PETG to promote a better printing experience without sacrificing the properties of PC or CF. The filament both provides better heat resistance, strength and toughness than ABS or other common filaments with printability only being marginally tougher.

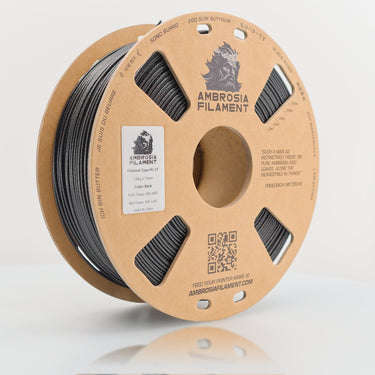

- Arrives to you in a cardboard box, with filament wound in a cardboard spool, vacuum sealed with a desiccant bag.
- Diameter: 1.75mm (+/-0.03mm)
- Filament Net Weight: 1KG
The glue holding the filament spool together is rated for an environment of 70C (158F).
Ambrosia Filament's Recommended Print Settings for our PC-CF filament:
| Attribute | Accepted Value(s) [Our Recommended Value] |
| Extruder Temperature | 250-290 Degrees Celsius [270] |
| Heated Bed | 100-115 Degrees Celsius [110] |
| Build Surface | PEA, PEI, Buildtak, or similar surface [Smooth PEI or PEA with adhesive] |
| Cooling Fan | 0-70% range varies by cooling capabilities |
| Environmental Temperatures | 40-120C [60C] |
| Soluble Support Materials | HIPS or other Water Soluble Support Material |
Technical Specifications for our PCCF Filament:
| Physical Properties | Test Methodology | Values |
| Density | ISO1183 | 1.21g/cc |
| Melt Flow Rate (250C/2.16KG) | ISO 1133 | 10g/10m |
| Moisture Absorption (23C/24h) | ISO 62 | <.2% |
| Mechanical Properties | Test Methodology | Values |
| Tensile Strength | ISO 527 | 40MPa |
| Elongation at break | ISO 527 | 7.5-8.5% |
| Flexural Modulus | ISO 527 | 2400MPa |
| Flexural Strength | ISO 178 | 85MPa |
| Impact Strength | ISO 180 |
5.5KJ/m2 |
| Thermal Dynamic Properties | Test Methodology | Values |
| HDT@ 0.455 MPa(66 psi) | ISO 75 | 120C |
Filament can absorb moisture easily. To prevent moisture absorption and contamination, the packing of filament should be kept sealed and in an airtight container with desiccant.
