LDO Orbiter Extruder V2.5 (Orbiter V2.5 and V2.0 to V2.5 Upgrade Kit)
LDO Orbiter Extruder V2.5 (Orbiter V2.5 and V2.0 to V2.5 Upgrade Kit)
$ 22.99
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
){kind=link}

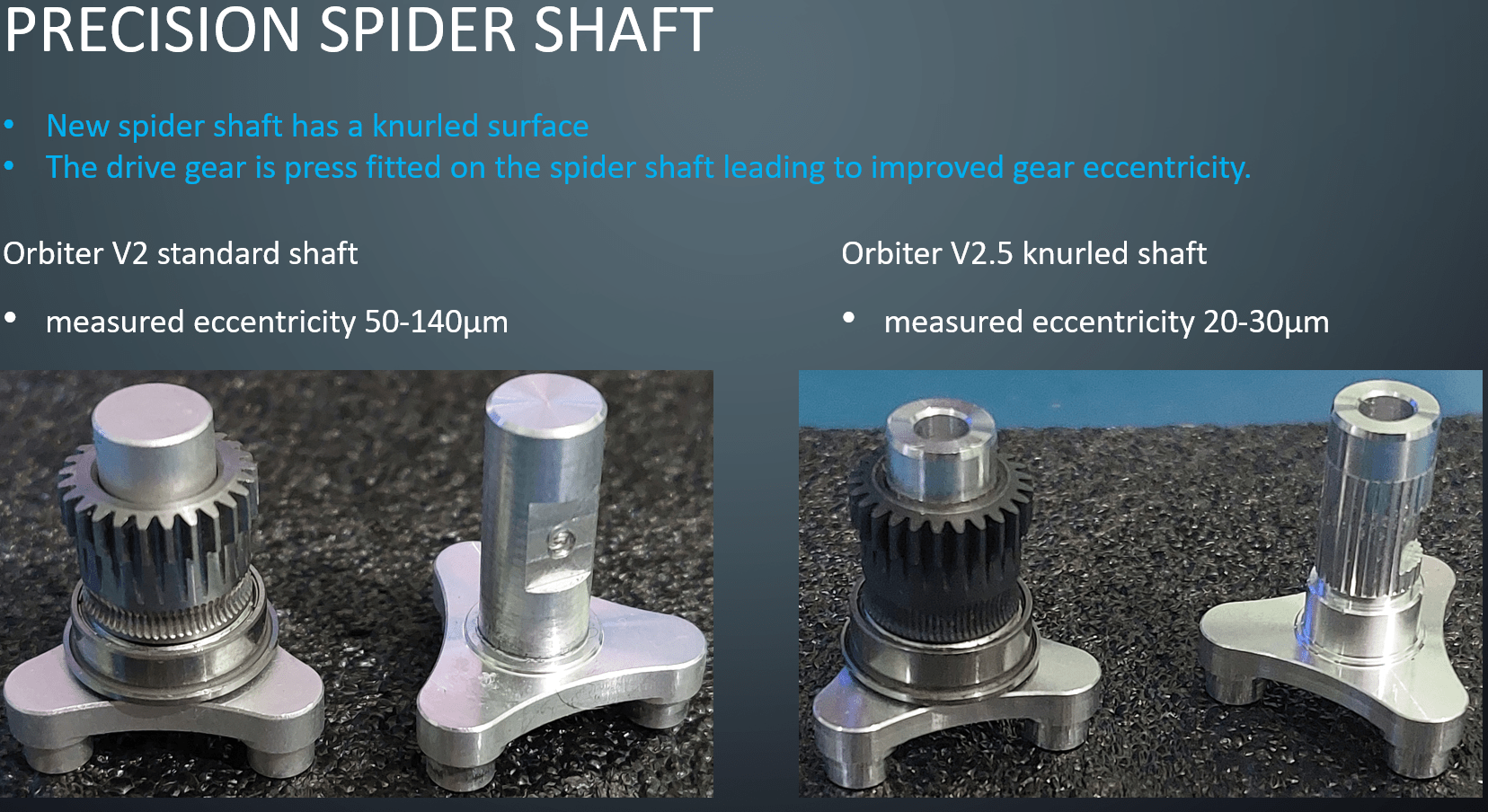

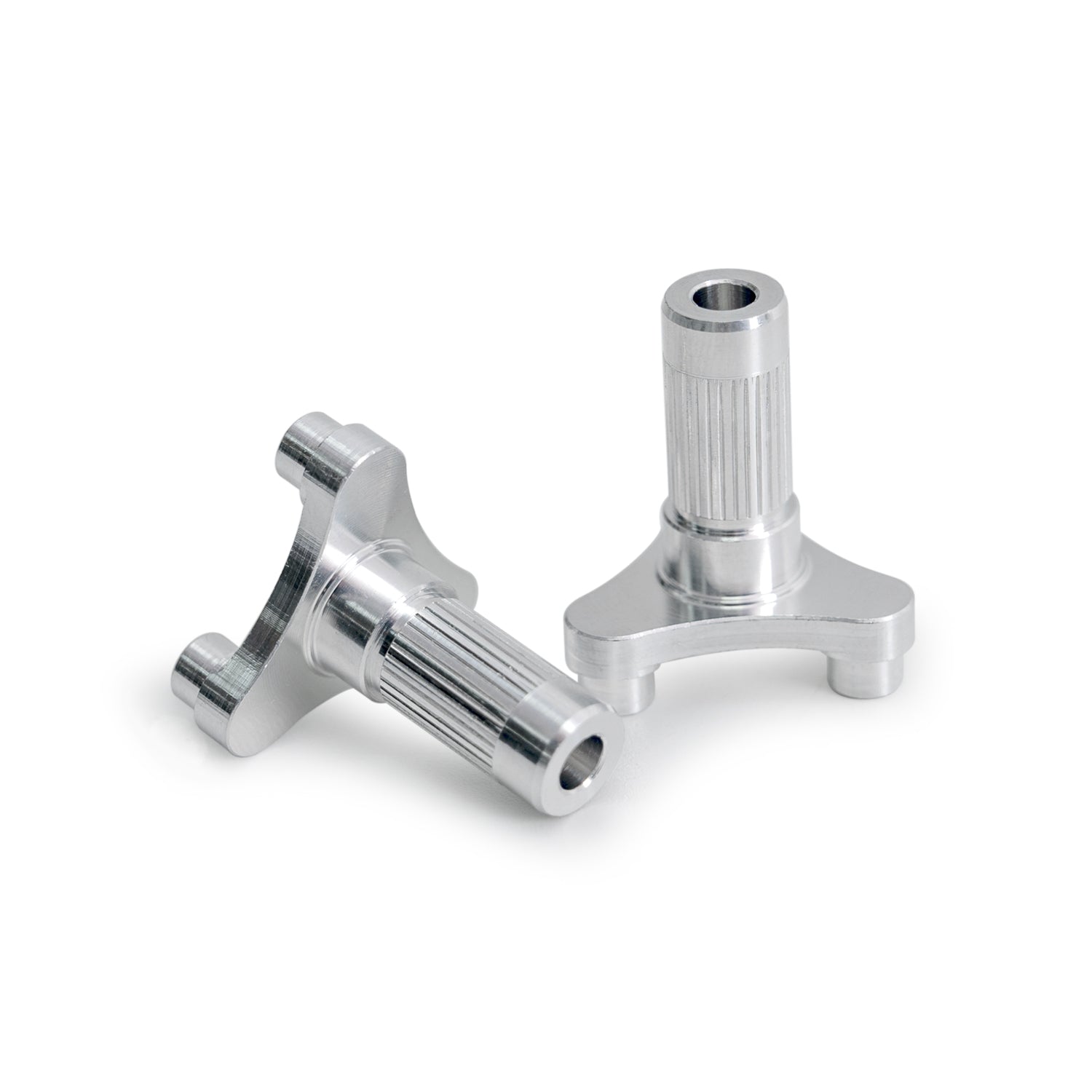

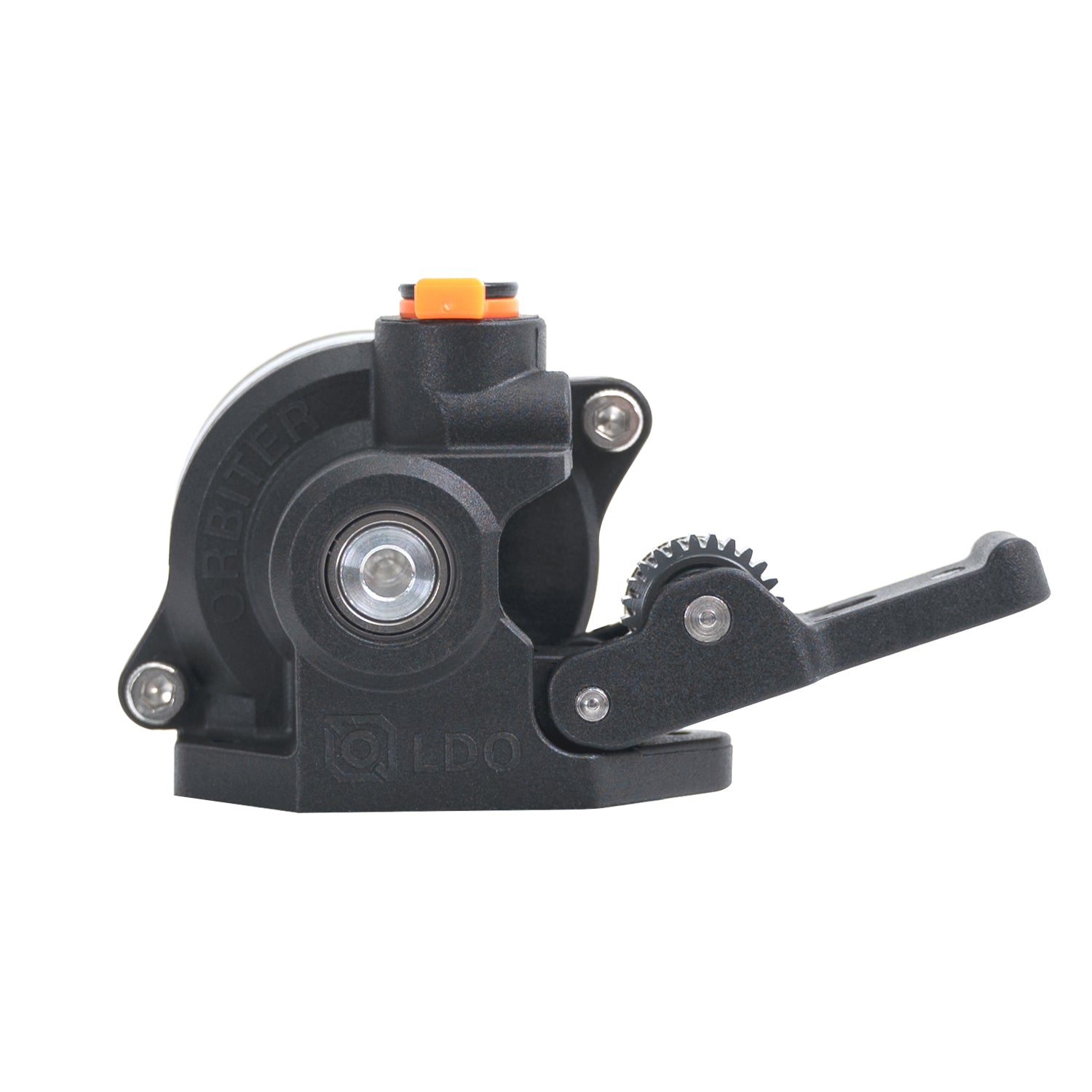

High precision direct drive extruder designed by Dr. Lorincz Rober in cooperation with LDO Motors. The LDO Orbiter V2.5 uses a new spider shaft with a knurled surface which results in much greater eccentricity (20-30 µm vs 50-140 µm) resulting in consistently better performance.

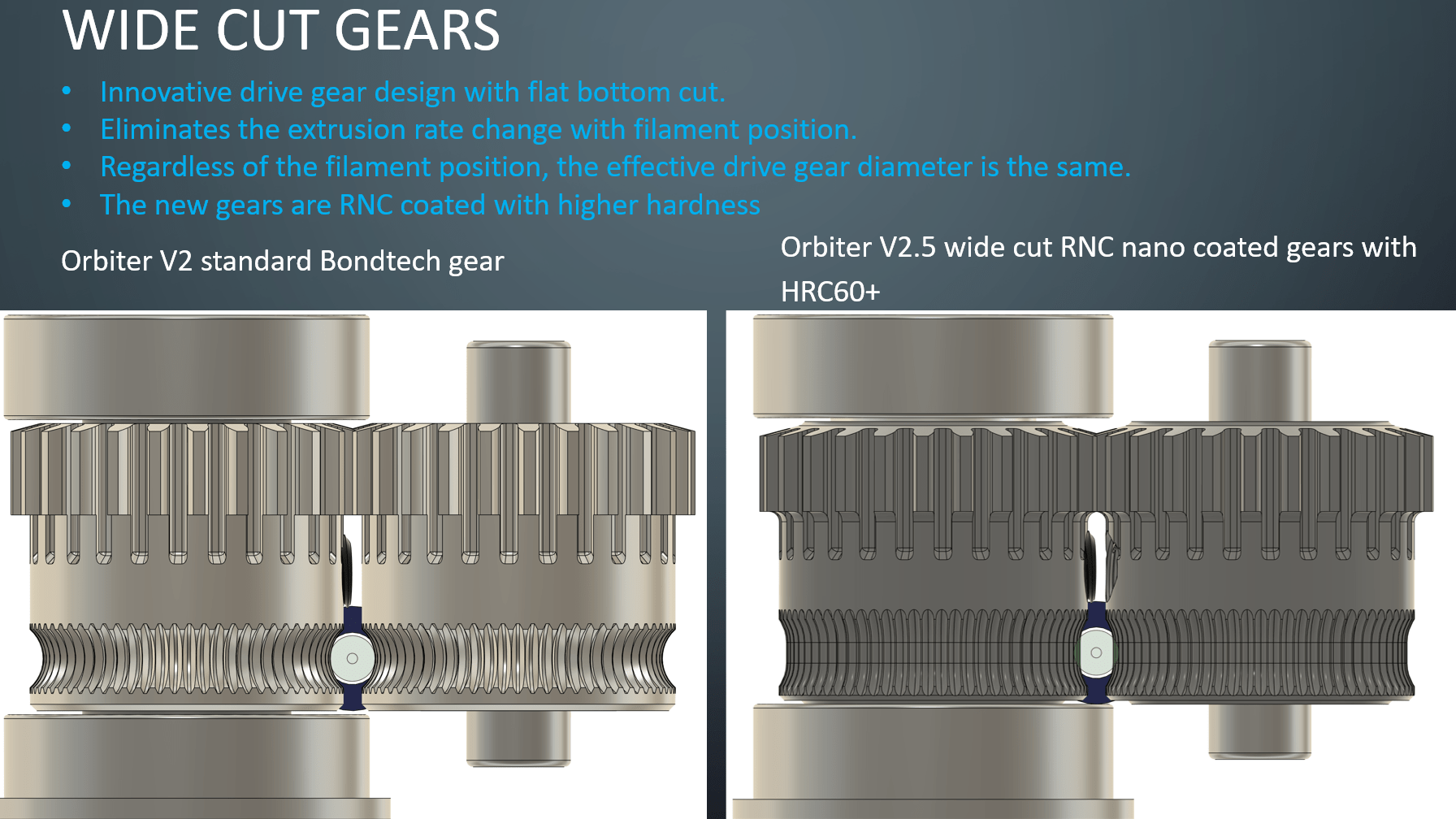

In addition, the new wide cut gears bring a new innovative design with a flat bottom cut, eliminates extrusion rate changes based on your filament position by providing a uniform drive gear diameter in all cases. Lastly, these gears now use a RNC nano coated gears with increased hardness (HRC60+) over the traditional gears provided by the Orbiter V2.0.
Complete kit includes:
- Orbiter V2.5

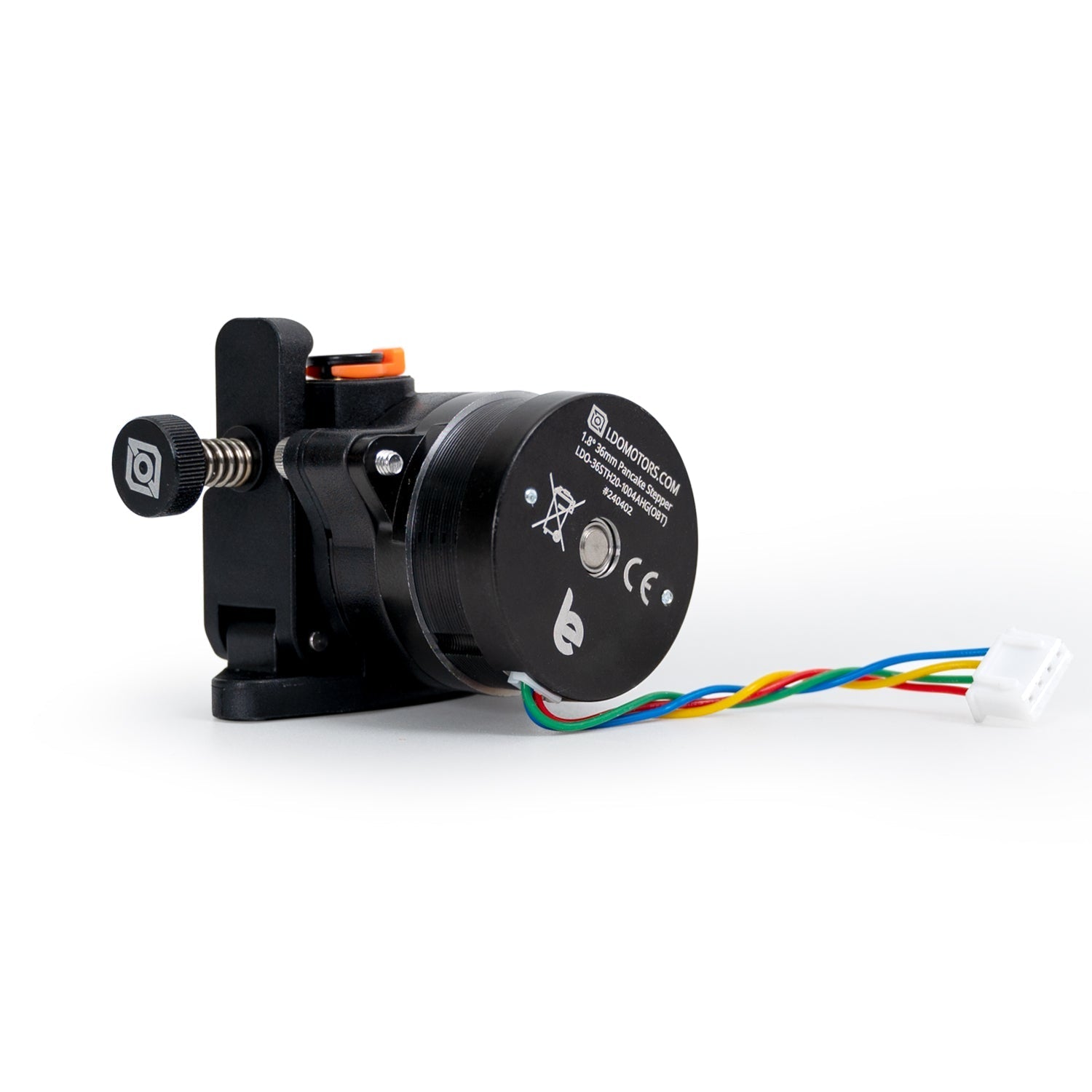

- LDO 36STH20-1004AHG(XH) Pancake Motor (when selected “with motor” variant, coming soon)
- Adapter Cable
- Mounting Hardware
- Hex Wrench
- Basic Configuration Instructions
Features:

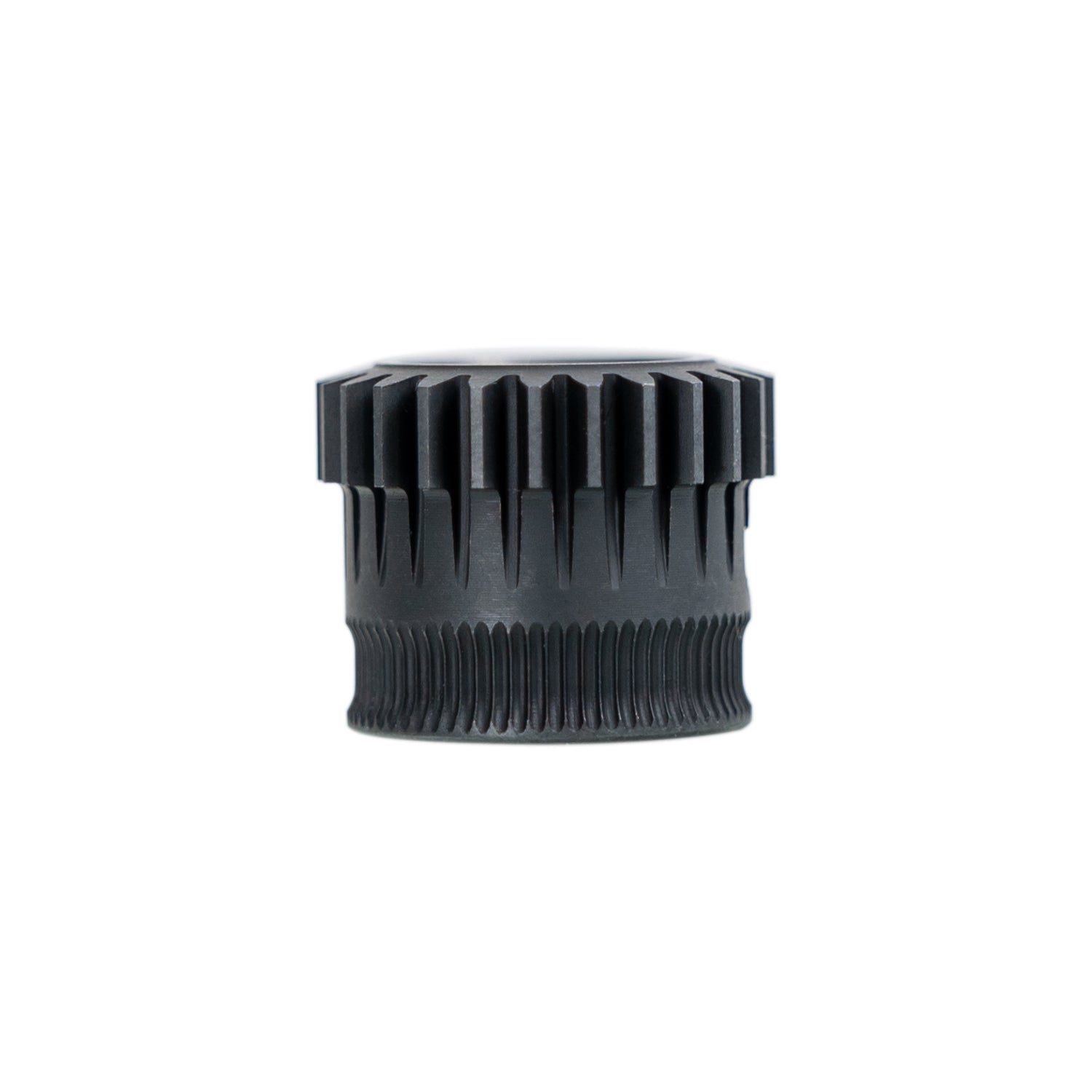

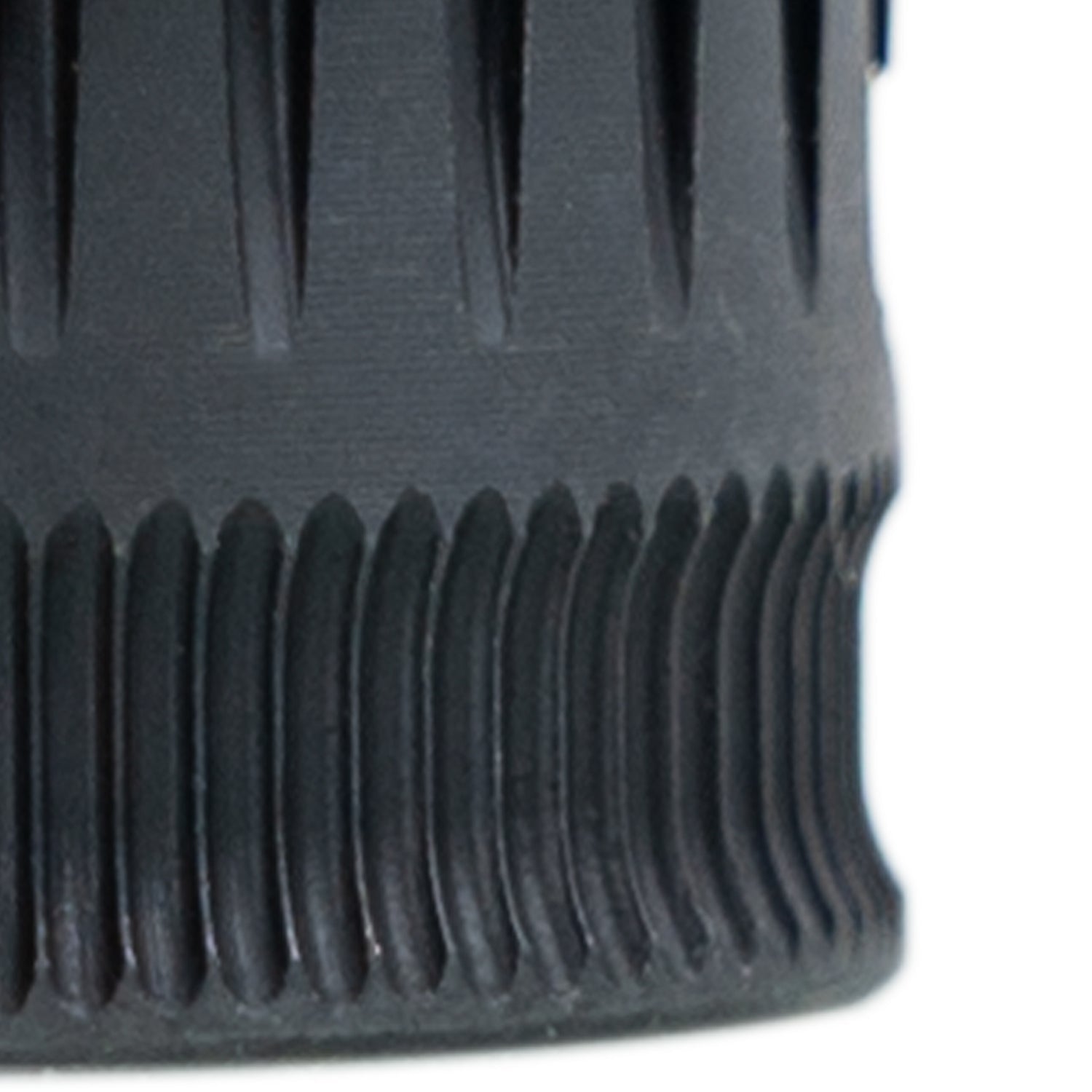

- RNC wide cut nano-coated dual filament drive gears
- 11mm drive gears

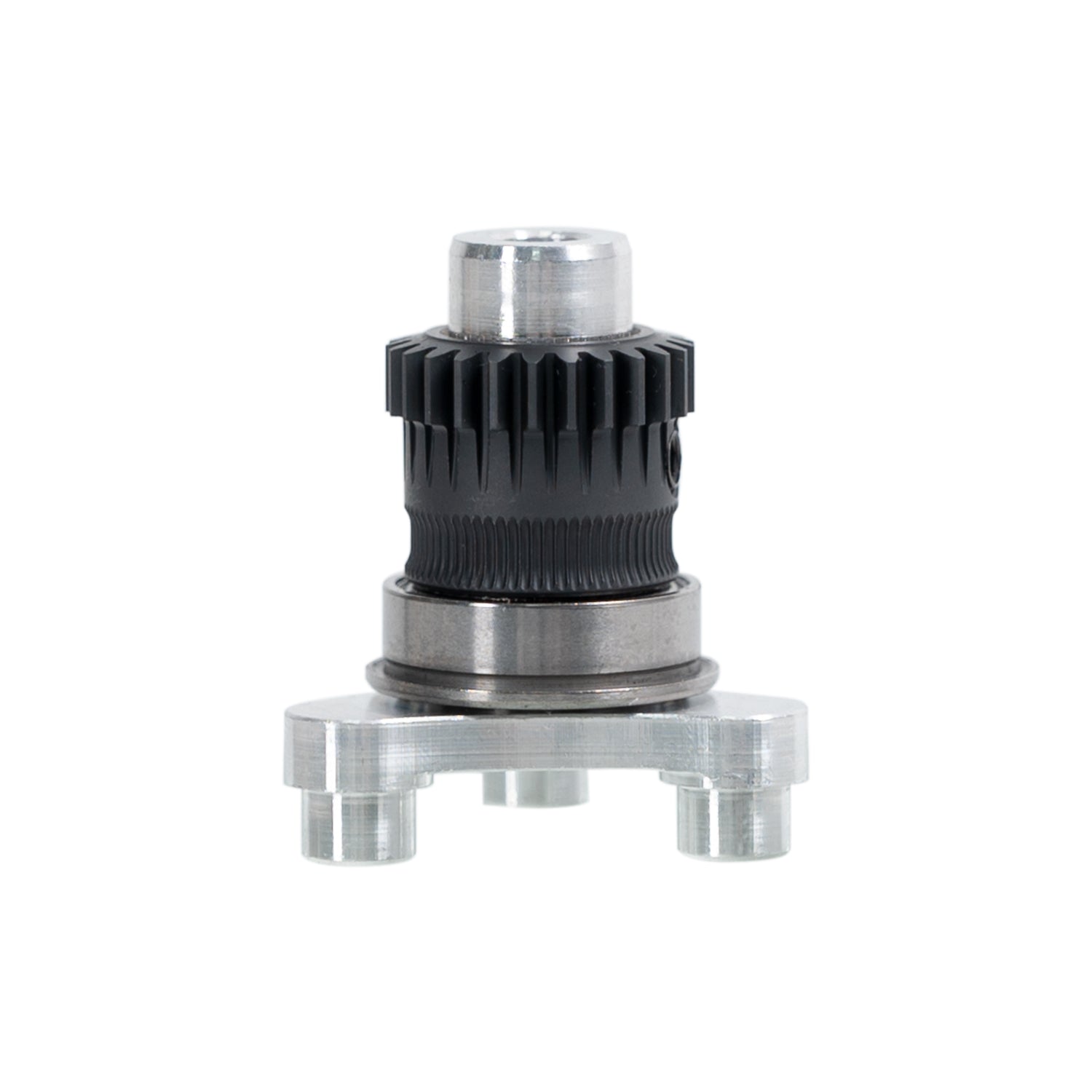

- Precision knurled spider shaft
- Weighs ~135 grams
- Smaller dimensions compared to Orbiter V1.5 (11.6% shorter)
- High temperature resistant injected housings - GPA12
- Machined PEEK secondary drive gear sleeve
- Stainless steel filament exit guide for better TPU printing experience and wear resistance for abrasive filaments

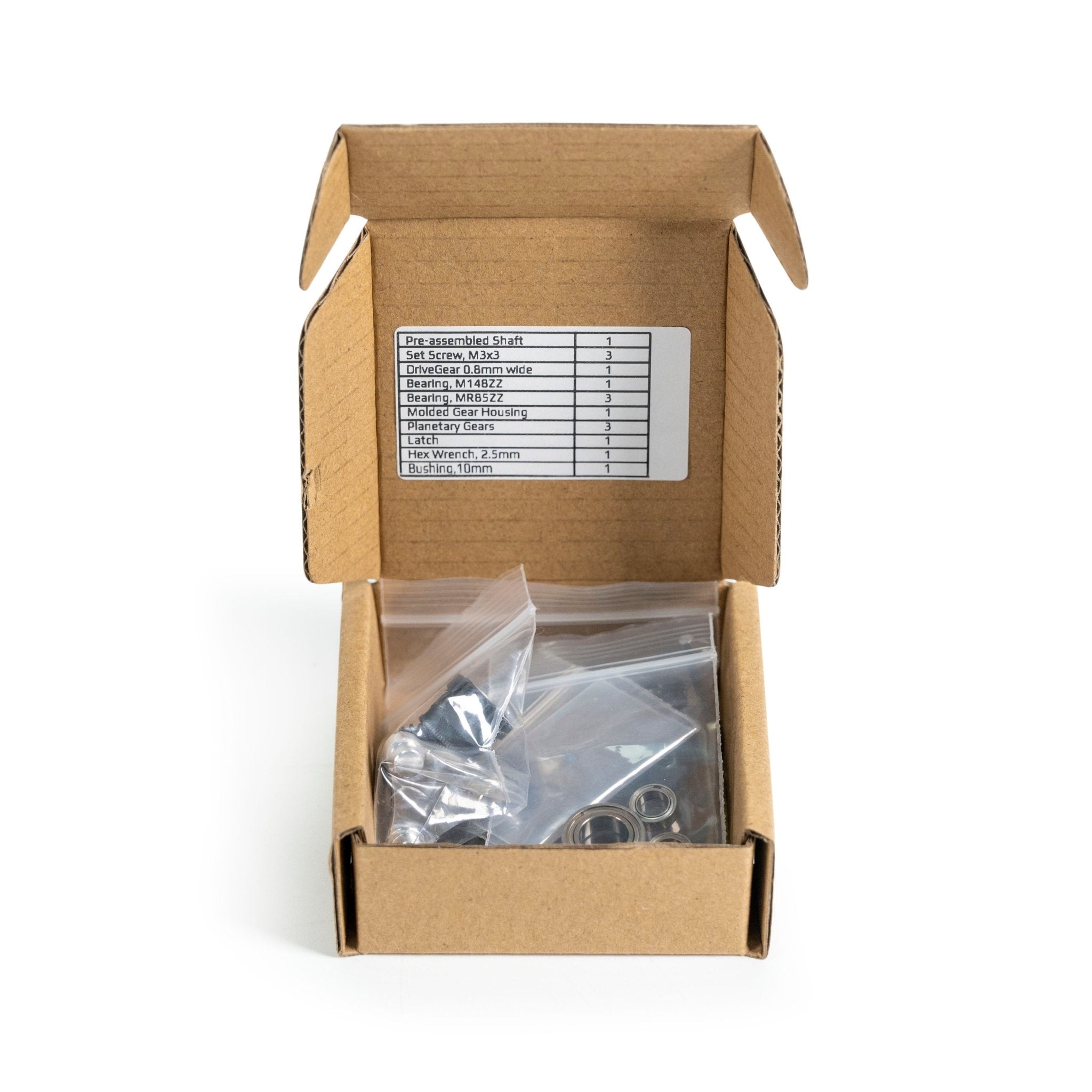

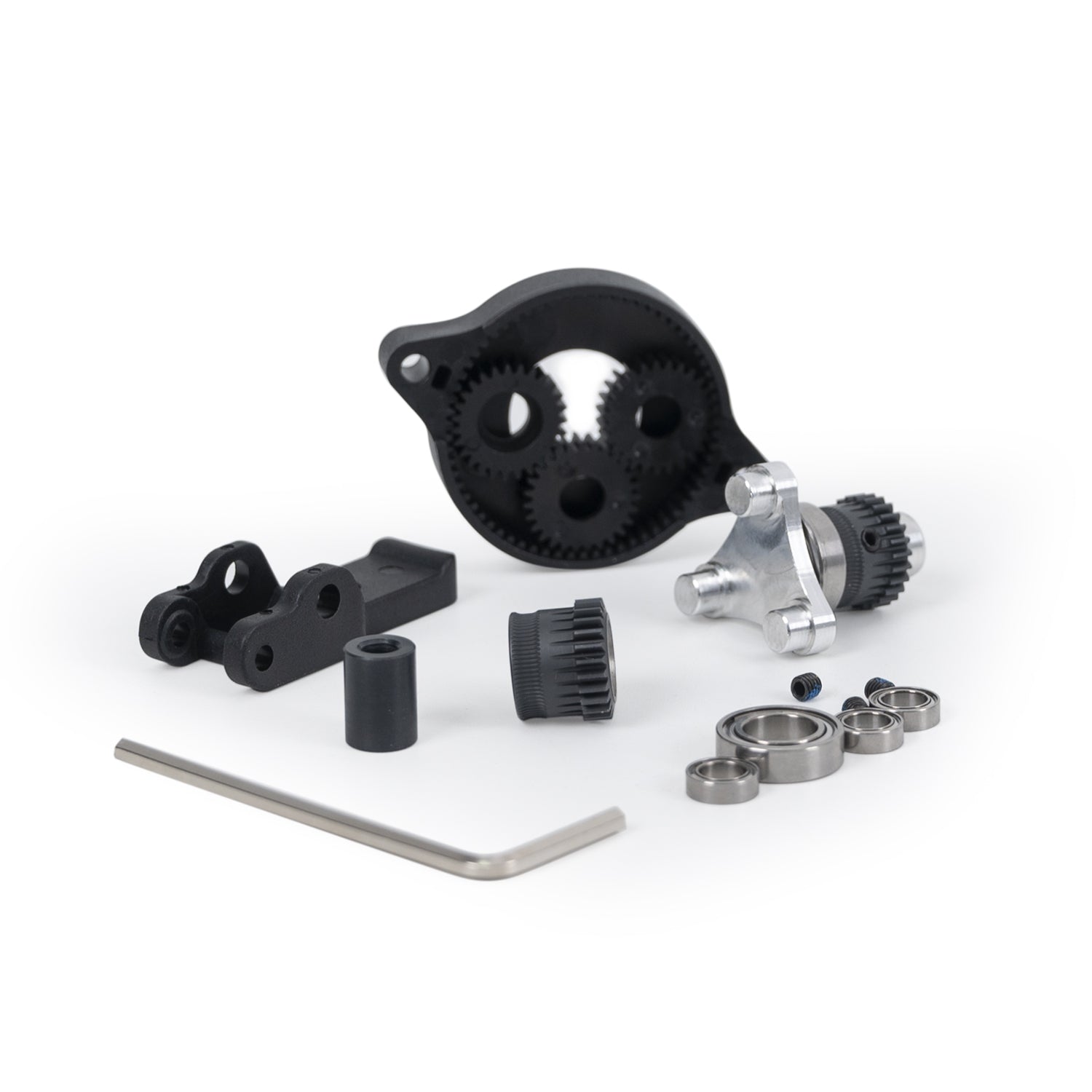

Upgrade kit includes all new hardware to convert an Orbiter V2.0 to a V2.5
