Dragon ACE Hot End
$ 64.99
/
Shipping calculated at checkout.
Dragon ACE Hot End
$ 64.99
/
Dragon ACE Hot End
$ 64.99
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The popular dragon, new and improved - the ACE improves on the incredible performance of the original dragon with the signature one handed nozzle changes with faster heating times and even more flow.

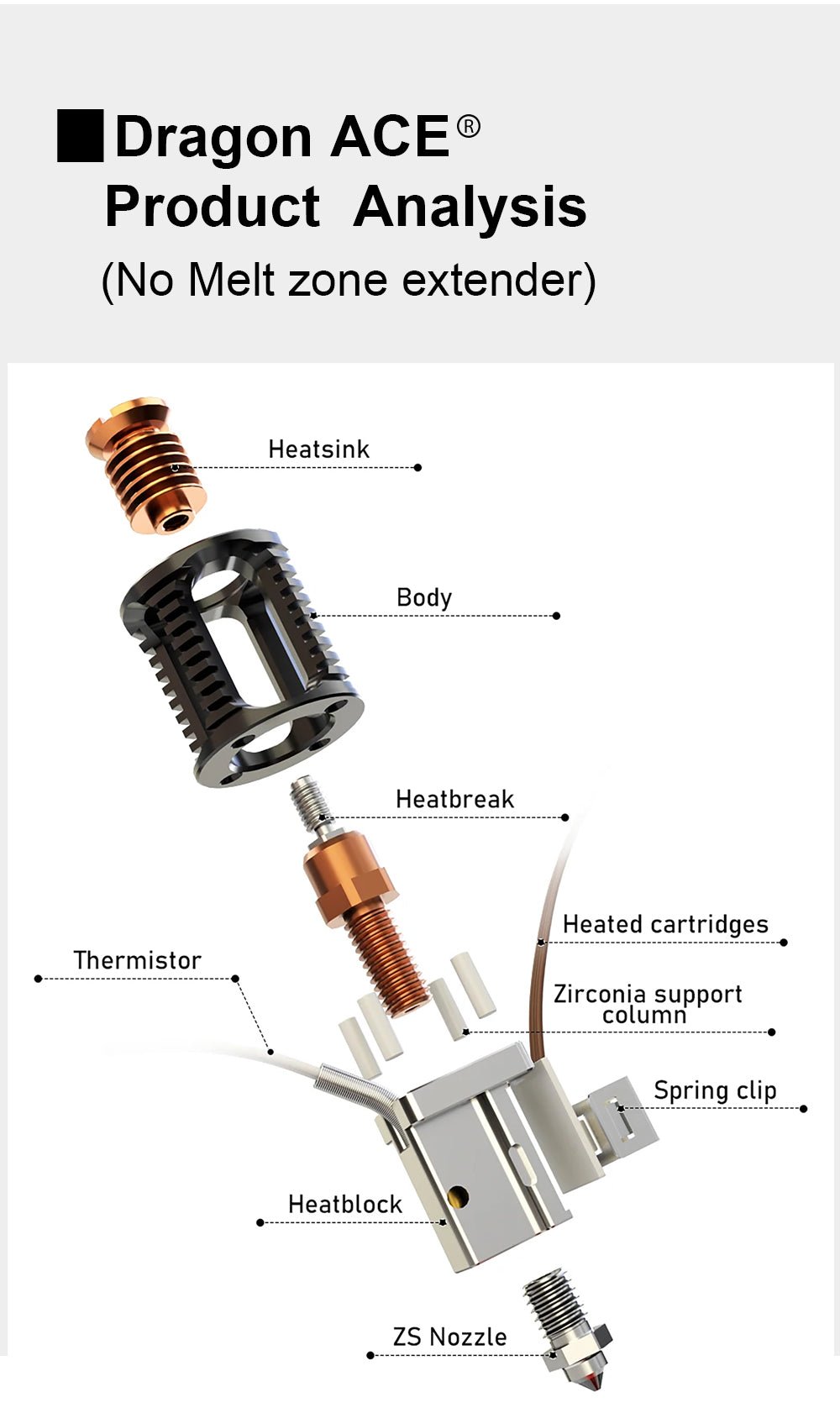

In order to reduce weight and size Dragon Ace™ heating blocks utilize ceramic heating pads as the heating element. Ceramic heating pads have a more certain contact surface, heat up faster, are smaller and lighter, and are easier to replace in case of damage.
The Dragon Ace®, even though the heating block becomes longer, it still weighs 10 grams less than the Orginal Dragon with the heating element included.④
To prevent print abrasive filaments from quickly wearing through thin-walled stainless steel tubes, the Dragon Ace™ heat breaker is made of titanium alloy, which is thicker and more abrasion-resistant for longer life while still maintaining excellent thermal breaking and mechanical strength.
▉Compatibility:
Compatible with most tool heads designed for V6 or Dragon/Dragon UHF
Compatible nozzles: V6 style with 7.5MM Thread length
Although the overall length of Ace is shorter than the Orginal , with the included spacer it still fits onto the tool head originally designed for the Orginal Dragon. ⑤
Dragon Ace™ provides adapters to fit the V6 Groove Mount, which can be mounted anywhere a V6 volcano hotend was originally designed to be mounted.
⑤ The heating section of Dragon Ace™ is 8.5MM longer than that of Orginal Dragon. There may be a mismatch in the height of the part cooling fan outlet and probe. If you can find parts specifically for a volcano heating block , that's no problem at all.
▉Documentation link:
https://drive.google.com/drive/folders/11QHxG745J42ZzM7vk0ET1ysG6nBwzrUO?usp=sharing
