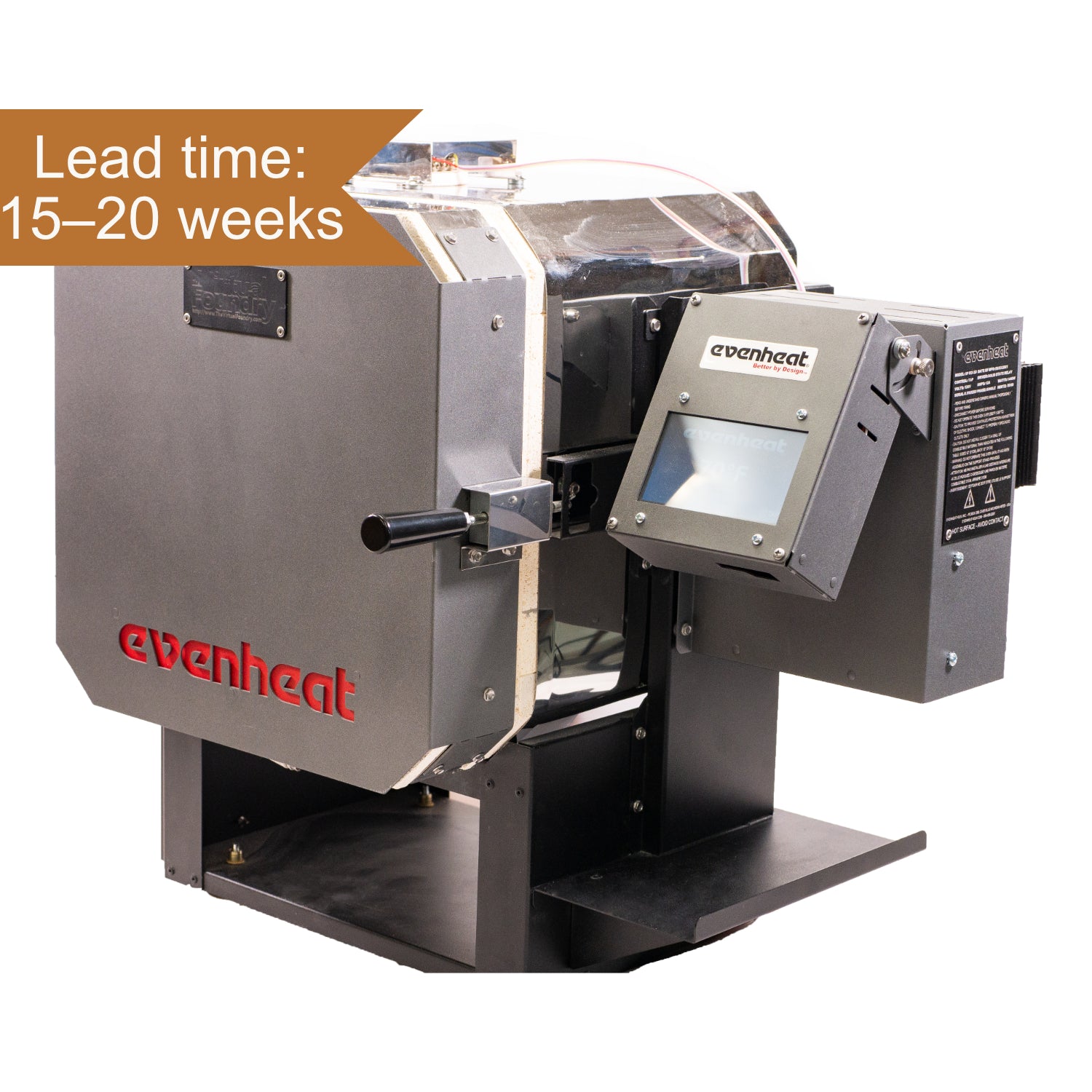

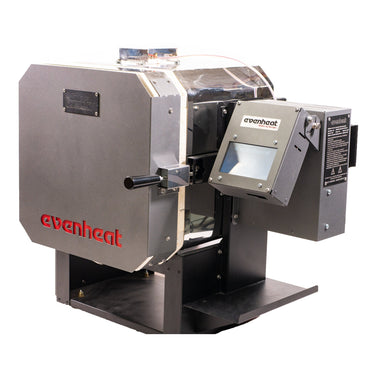

The Virtual Foundry Sintering Kiln

The Virtual Foundry Sintering Kiln will sinter printed metal, glass and ceramic 3D prints with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C / 2350°F.  It features a touchscreen (TAP) programmable temperature control with multiple ramp/hold programmable sequences and recipes.

$3,702.98 (120v) / $3,747.98 (240v)
Contact orders@thevirtualfoundry.com for a shipping quote and to place an order.

How it works:
3D Print, Pack, Sinter, Metal!
"Pack" the printed part in Sintering Refractory Ballast, cover with Sintering Carbon, and load the part in the Kiln. Select the parameters for sintering, click start and your parts will soon turn to functional metal objects!!

Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.

Specs:
120v, 12A , 1440w / 240v, 6A, 1440w
Max. Temperature: 1288°C/2350°F
CE : Yes has CE Designation
Controller: TAP control, touchscreen. Program and monitor with your phone or computer.
Plug: 5-15P (120v) / Unterminated (240v)
Solid State output

Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), Amaco 46-D

Sintering Area/ Chamber Volume:
7.5" Width x 7.5" Depth x 7.5" Height /
191mm Width x 191mm Depth x 191mm Height

Kiln Outer Dimensions:
22.25" Width x 18" Depth x 21.25" Height /
565mm Width x 457mm Depth x 540mm Height

Shipping Weight:  50lbs

This Kiln Ships Via Freight

*Prices do not include shipping. Contact us for a shipping quote.

Compare The Virtual Foundry's two kiln options here.

Current Lead Time: 4-6 Weeks
