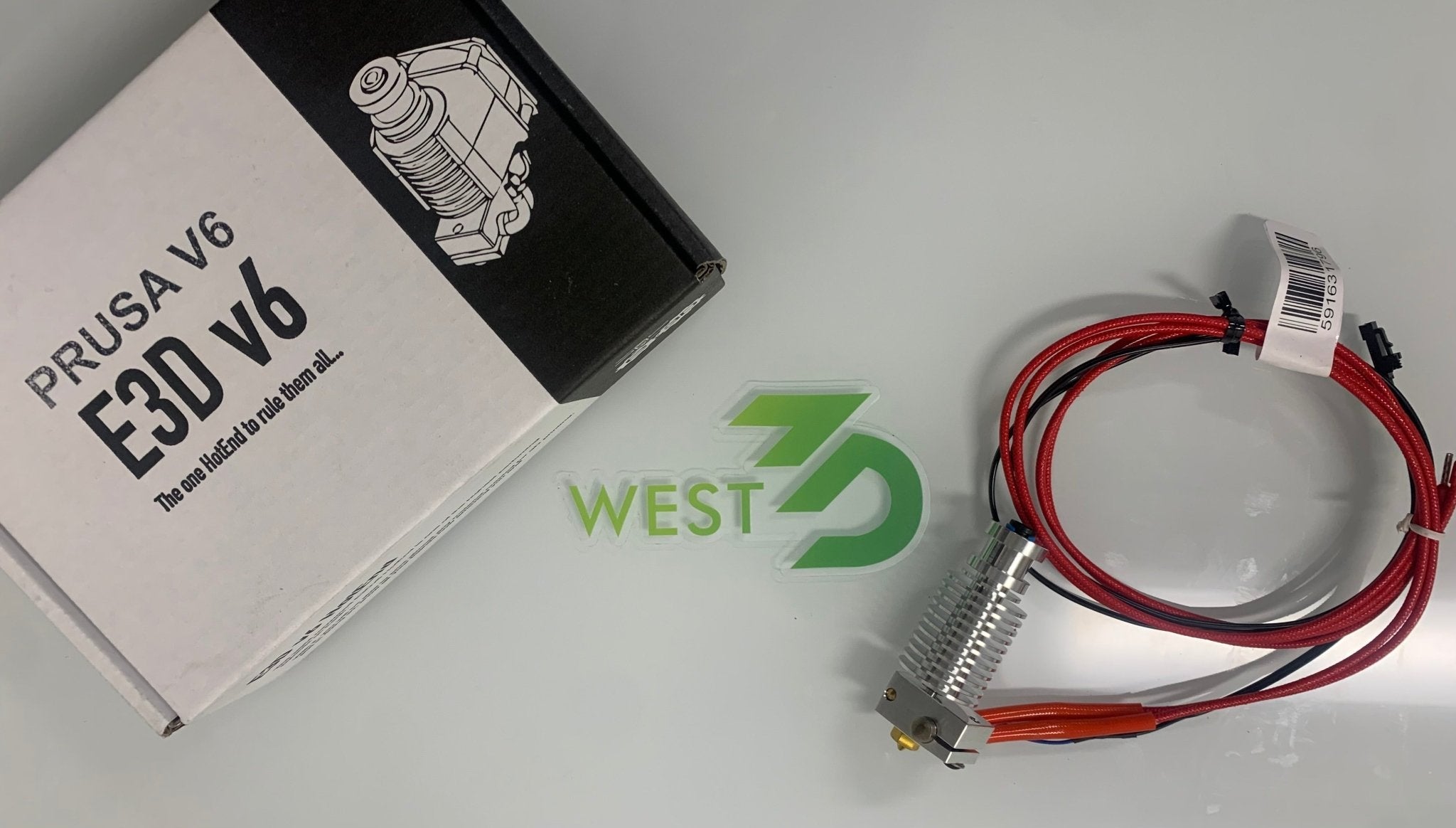

Genuine Prusa Edition E3D V6 All-Metal Hot End (HotEnd) 24V Direct Drive

The Prusa specific HotEnd is a drop-in replacement for Prusa MK2/2S and MK3/3S printers, featuring the exact components that we supply directly to Prusa.

High-temperature performance

The benefit of an all-metal design means the V6 can comfortably reach 300°C with the supplied thermistor. If you’d like to print at higher temperatures (up to 500°C), then you will need to use a plated copper heater block along with a PT100 or PT1000. Print standard materials such as PLA, PETG and ABS and high-temperature materials such as Polycarbonate, Ultem, Nylon and PEEK.

Easy to use

The V6 features a cartridge-style heater block, enabling a no-fuss approach to replacing both heater cartridges and temperature sensors. Replacement thermistors, PT100’s and thermocouples can be slid into place and secured with a grub screw, ensuring maintenance is simple and painless.

Precise

Our all-metal HeatBreak maintains a sharp thermal break to provide better control over filament output; improving start and stops when extruding, as well as more effective retraction, combating oozing and stringing. The all-metal HeatBreak features a refined internal surface finish to reduce extrusion force and improve the reliability of retractions.

Prusa drop-in replacement

Featuring a Prusa specific heatbreak with a custom internal geometry, providing more reliability with retractions when using the MMU.

Ships with a Prusa specific thermistor with a pre-prepared extension cable for a drop-in replacement experience.

Please note:

This HotEnd does not come with the specific PTFE used by Prusa, please retain the PTFE from your existing HotEnd. For reference, PTFE should look like this on the MK3S/MK2.5S and this on a MK3/MK2.5 MMU2.

Key features:

- Prusa HeatBreak

- Maximum temperature: 300°C

- Prusa thermistor

- 40w heater cartridge

Kit includes:

- 1 x V6 HeatSink 1.75 mm

- 1 x Stainless steel Prusa HeatBreak

- 1 x Brass nozzle 1.75mm 0.4mm

- 1 x 40W 24V OR 12V heater cartridge

- 1 x V6 aluminium HeaterBlock

- 1 x Prusa specific thermistor cartridge

- 1 x Collet

- 1 x Collet clip

- 1 x V6 fixings kit

- 1 x M3 grub screw

- 1 x M3 washer

- 1 x Thermal paste
