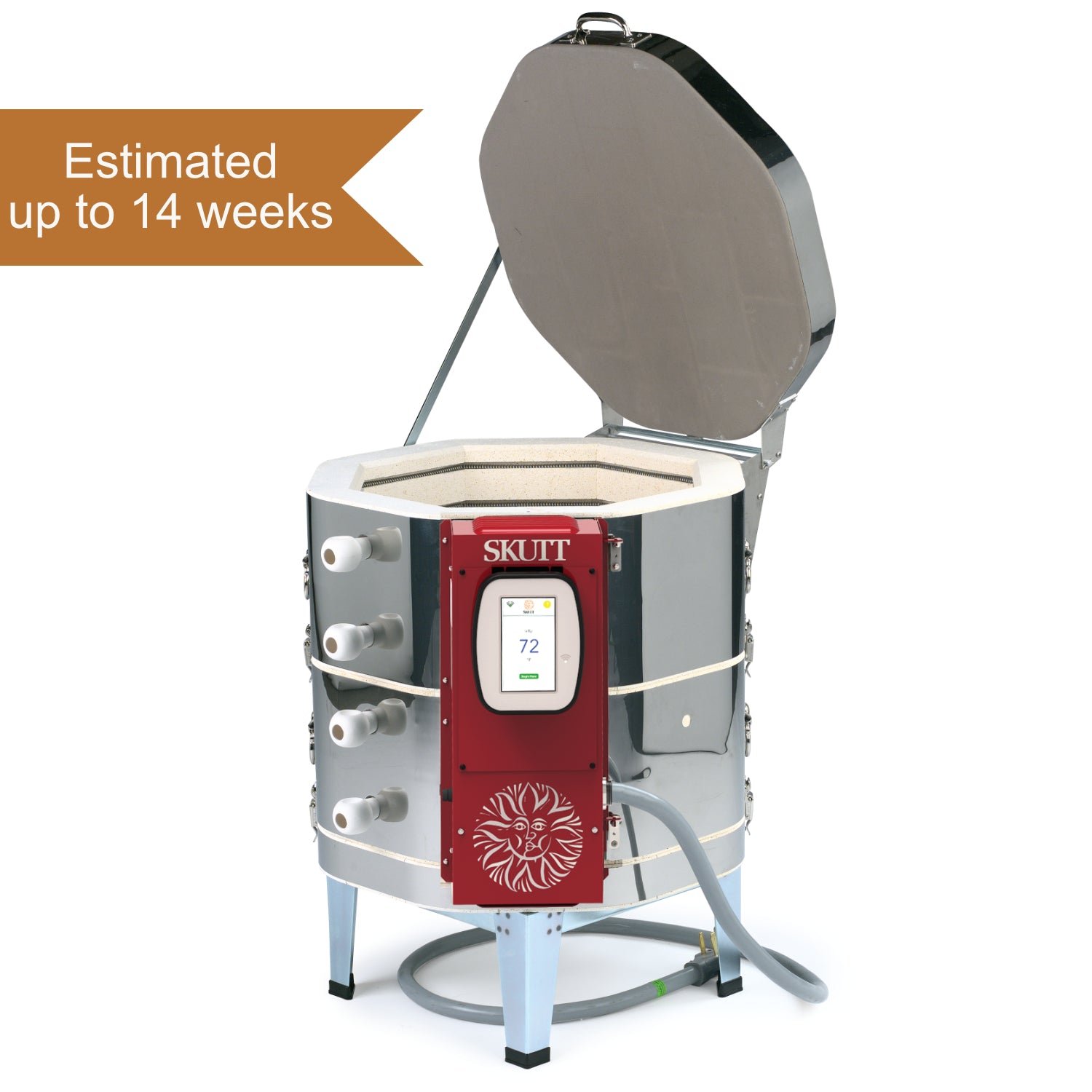

FireX Max Sintering Kiln
FireX Max Sintering Kiln
$ 5,135.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The FireX Sintering Kiln will sinter printed metal, glass and ceramic 3D prints with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C / 2350°F.
Current lead time: 8-11 weeks
Contact orders@thevirtualfoundry.com for a shipping quote and to place an order.
How it works:
3D Print, Pack, Sinter, Metal!
"Pack" the printed part in Sintering Refractory Ballast, cover with Sintering Carbon, and load the part in the Kiln. Select the parameters for sintering, click start and your parts will soon turn to functional metal objects!
Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.
Specs:
240v, 26.7A, 6400w, Single-Phase OR
208v, 26.7A, 5550w, Single-Phase
Max. Temperature: 1288°C/2350°F
Controller: KilnMater Touchscreen (KMT)
Plug: 6-50P
UL Listed
Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), Amaco 46-D
Sintering Area / Chamber Volume:
16.5" Diameter x 18" Depth /
419mm Diameter x 457mm Depth
Kiln Outer Dimensions:
22.5" Diameter x 32" Height /
572mm Diameter x 813mm Height
Shipping Weight: 145lbs
Compare The Virtual Foundry's kiln options here.
This Kiln Ships Via Freight
Only available in the USA
*Prices do not include shipping. Contact us for a shipping quote.
